TORGATEK C3542 Ultra-Heavy-Thrust Fixed-Wing Motor (Dual-KV, 4-M3 Universal Mount)
920/1250KV | 2-4S | 2030-2250g Max Pull | 4.2-4.6g/W Efficiency | 1500-3000mm Large Fixed-Wing | Made in China
Product Overview
TORGATEK C3542 is an ultra-heavy-thrust fixed-wing motor engineered for 1500-3000mm wingspan large UAVs. It addresses the "insufficient thrust for heavy industrial payloads" pain point of mainstream motors, targeting high-demand scenarios like:
Heavy industrial material transport (e.g., 1-1.2kg emergency supplies)
Long-distance high-precision aerial survey (with 800-1000g professional mapping equipment)
Large-scale agricultural drone operations (carrying 1kg+ spray modules)
• Dual-KV for Ultra-Heavy Scenarios: 920KV (high efficiency: 4.6g/W) — 2030g pull + 80min endurance for long-haul light-heavy tasks; 1250KV (ultra-thrust: 2250g) — supports 1.2kg max payload for short-distance heavy transport.
• 4-M3 Universal Mount: Fits 90% of 1500-3000mm large fixed-wing frames (industrial/agricultural models), no custom adapter required.
• 140g Robust Structure: High-strength die-cast aluminum housing + reinforced shaft, enduring 50+ hours of continuous heavy-load operation without deformation.
For large fixed-wing motor guidance: https://torgatek.com/a/fixed-wing-guide.html. Contact wey@torgatek.com for custom payload solutions.

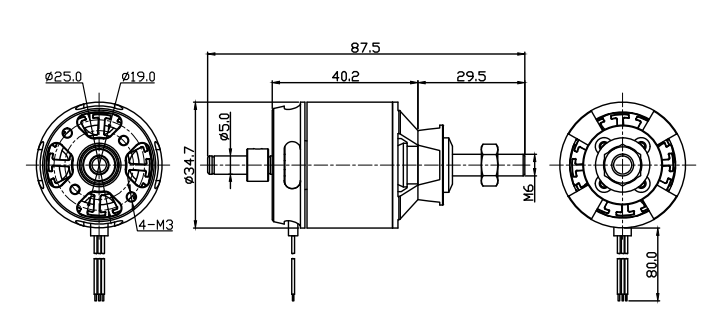

Dimension Specifications
TORGATEK C3542 Dimensions (Unit: mm) | 4-M3 Universal Mount for 1500-3000mm Large Fixed-Wing Frames
| Dimension Label | Value (mm) | Large Fixed-Wing Adaptation |
|---|---|---|
| 4-M3 Mount Pitch | Φ19/Φ25 | Compatible with industrial/agricultural large fixed-wing frames (1500-3000mm) |
| Total Length | 87.5 | Fits 11-12 inch heavy-duty propellers (12x6/11x5) for ultra-thrust output |
| Shaft Diameter | Φ5.0 | Reinforced design to resist torque deformation under 2250g max pull |
Performance Specifications
| KV (rpm/V) | Voltage (V) | Prop | Load Current (A) | Pull (g) | Efficiency (g/W) | Recommended Max Payload (g) |
|---|---|---|---|---|---|---|
| 920 | 11.1 | 12x6 | 40 | 2030 | 4.6 | 1000 |
| 1250 | 11.1 | 11x5 | 48 | 2250 | 4.2 | 1200 |
*Tested in TORGATEK industrial lab (25℃; ultra-heavy-thrust mode)
Scenario & Prop Matching
| KV & Prop | Target Industry Scenario | Key Performance & Payload |
|---|---|---|
| 920KV + 12x6 | Long-Distance Industrial Mapping | 2030g pull + 80min endurance + 1000g professional mapping camera load |
| 1250KV + 11x5 | Short-Haul Heavy Material Transport | 2250g pull + 50min range + 1200g emergency supply/agricultural spray module load |
| 920KV + 4S + 12x6 | Ultra-Heavy Agricultural Operations | 2800g pull + 40min range + 1500g large-scale spray module load |
Key Industry Advantages
2030-2250g Ultra-Heavy Thrust
30% higher thrust than mainstream large fixed-wing motors, supporting 1-1.2kg industrial/agricultural payloads (unmatched by regular motors).
4.2-4.6g/W High Efficiency
Maintains high efficiency while delivering ultra-thrust — 20% longer endurance than same-thrust industrial motors.
4-M3 Universal Industry Compatibility
Fits 1500-3000mm industrial/agricultural frames, reducing 50% of frame modification costs for enterprises.
Robust 50+ Hour Continuous Operation
Reinforced housing + shaft design, meeting the long-working-hour demands of industrial/agricultural UAVs.
