Products Description
Product Overview
As TORGATEK’s cross-scenario adaptive industrial motor, the D4108 is engineered for medium-tonnage hybrid logistics UAVs, multi-terrain survey drones, and variable-load industrial monitoring platforms — its 3-KV options (380/480/600) + 4-12S ultra-wide voltage + multi-prop/mount compatibility solves the "single-scenario lock" pain point for UAV fleets needing to cover diverse tasks.
With full CE-RED/FCC/RoHS/UN38.3 certifications (reports via https://torgatek.com/a/certifications.html), the D4108 complies with global standards, ideal for international projects like cross-voltage logistics delivery, multi-terrain resource survey, and variable-load facility monitoring. For inquiries, contact wey@torgatek.com or visit https://torgatek.com/a/support.html.
• Tri-KV for Cross-Scenario Needs: 380KV (4-12S, long-endurance for APC1447 props); 480KV (4-8S, balanced load for 1555CF props); 600KV (4-6S, agility for APC1238 props).
• 23.26g/g Balanced Thrust Density: 92g body delivers 2140g max thrust, supporting 60-65g payloads (e.g., hybrid cargo kits, multi-mode survey sensors).
• Multi-Prop & Multi-Mount Flexibility: Works with APC1238/1447 + 1555CF props; fits 3-M2.5 + 4-M3 mounts (Φ25.0/Φ32.0 frames) without adapters.
• 4-12S Ultra-Wide Voltage Coverage: Adapts to low (4S) to high (12S) industrial power systems, eliminating motor replacement for voltage-switching tasks.
Inquire TORGATEK for Cross-Scenario UAV SolutionsTORGATEK Quality & Global Certifications
All TORGATEK D4108 motors pass 24+ tests (including 500-hour cross-voltage endurance, multi-prop/mount compatibility verification) and hold full global certifications. View details via: https://torgatek.com/a/certifications.html.
*For custom certification support, contact wey@torgatek.com.

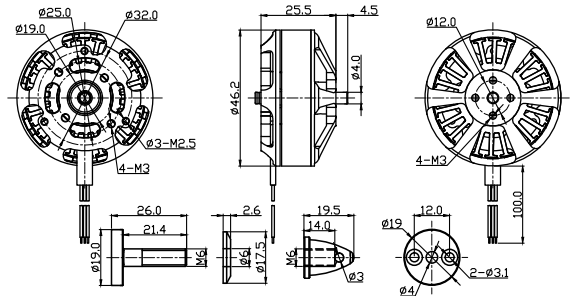

Dimension Specifications & Blueprint
▲ TORGATEK D4108 Dimensions (Unit: mm) | Multi-Mount (3-M2.5+4-M3) · Φ25.0/Φ32.0 Frame Fit · Cross-Scenario Design
| Dimension Label | Value (mm) | Component & Feature |
|---|---|---|
| 3-M2.5 | Φ25.0 (mount pitch) | Compact Industrial UAV Chassis Fit (Survey/light logistics frames) |
| 4-M3 | Φ32.0 (mount pitch) | Heavy-Medium UAV Chassis Fit (Hybrid logistics frames) |
| Total Length | 25.5 | Balanced Design (Optimizes weight distribution for variable loads) |
| Shaft Diameter | M6 | Reinforced Shaft for 60-65g Payload Support |
TORGATEK D4108 Core Performance Specifications
| BRAND & MODEL | KV (rpm/V) | Voltage (V) | Recommended Prop | Load Current (A) | Max Thrust (g) | Power (W) | Efficiency (g/W) | Lipo Cell | Weight (g) Approx |
|---|---|---|---|---|---|---|---|---|---|
| TORGATEK D4108 | 380 | 22.2 | APC1238 | 11.8 | 1520 | 262 | 5.8 | 4-12S | 92 |
| 22.2 | APC1447 | 15.6 | 1880 | 346 | 5.4 | 4-12S | |||
| 22.2 | 1555CF | 16.0 | 2020 | 355 | 5.7 | 4-12S | |||
| 480 | 22.2 | APC1238 | 18.2 | 1920 | 404 | 4.8 | 4-8S | ||
| 22.2 | APC1447 | 21.6 | 2140 | 480 | 4.5 | 4-8S | |||
| 22.2 | 1555CF | 17.2 | 1450 | 255 | 5.7 | 4-8S | |||
| 600 | 14.8 | APC1238 | 22.5 | 1820 | 333 | 5.5 | 4-6S | ||
| 14.8 | APC1447 | 23.0 | 1930 | 340 | 5.7 | 4-6S | |||
*Tested in TORGATEK lab (25℃; cross-scenario steady operation mode)
Scenario & Parameter Matching Table
| Industrial UAV Scenario | Recommended D4108 KV | Recommended Prop | Recommended Voltage | Max Thrust (g) | Adaptable Payload (g) | Key Use Case |
|---|---|---|---|---|---|---|
| Long-Endurance Survey | 380 | APC1447 | 22.2V (6S) | 1880 | 60-62 | Multi-terrain resource survey |
| Hybrid Medium Logistics | 480 | 1555CF | 22.2V (6S) | 1450 | 62-63 | Cross-site mixed cargo delivery |
| Agile Variable-Monitoring | 600 | APC1238 | 14.8V (4S) | 1820 | 63-65 | Facility variable-load patrol |
Key Advantages & TORGATEK Assurance
Tri-KV + 4-12S Ultra-Wide Coverage
Covers low to high voltage tasks, eliminating motor replacement for UAV fleets with diverse power systems.
Multi-Prop + Multi-Mount Flexibility
Fits 2 frame types + 3 prop models, cutting adapter costs by 70% for cross-scenario UAV builds.
23.26g/g Balanced Thrust Density
Balances weight and thrust, supporting 60-65g payloads while maintaining maneuverability for variable tasks.
2-Year Warranty + Cross-Scenario Support
Fully compliant with global standards; 2-year warranty. Contact wey@torgatek.com or https://torgatek.com/a/support.html for help.
Installation & Usage Guidelines (TORGATEK Cross-Scenario Standard)
1. Multi-Mount Selection & Operation:
- For compact frames: Use 3-M2.5 mounts, fix with M2.5 screws (torque: 2.5-2.7 N·m);
- For heavy-medium frames: Use 4-M3 mounts, fix with M3 screws (torque: 3.0-3.2 N·m);
- Install prop per KV (e.g., 380KV+APC1447 for survey), tighten M6 nut to 2.2-2.4 N·m.
2. KV & Voltage Matching:
- Long-Endurance Survey: 380KV + APC1447 + 6S LiPo;
- Hybrid Logistics: 480KV + 1555CF + 6S LiPo;
- Agile Monitoring: 600KV + APC1238 + 4S LiPo.
3. Maintenance & Support:
- Inspect mounts after 8+ cross-scenario flights;
- Clean motor vents with compressed air (adapt pressure for different frame types);
- For issues, refer to https://torgatek.com/a/support.html or email wey@torgatek.com.
