Products Description
Product Overview
As TORGATEK’s flagship ultra-heavy low-KV industrial motor ( Made in China with heavy-duty manufacturing standards), the D8110 is engineered for ultra-heavy cross-region logistics UAVs, large-scale industrial payload platforms, and heavy agricultural植保 drones — its 7300g max thrust + 8-M4.0/8-M3 multi-mount design + 100KV low-noise large-prop (28×9.2) compatibility solves the "extreme heavy load vs. chassis stability/noise" pain point for UAVs carrying 200+g super-heavy equipment.
Manufactured in TORGATEK’s Made in China ISO 9001-certified heavy-industrial factory, the D8110 meets global compliance standards (CE/FCC/RoHS/UN38.3) and is ideal for international projects like cross-border ultra-heavy cargo delivery, 2000+ acre heavy agricultural植保, and industrial super-heavy equipment transport. For inquiries, contact wey@torgatek.com or visit https://torgatek.com/a/support.html.
• 100KV Low-KV for Super-Heavy Low-Noise Operation: Matches 28×9.2 large props to deliver 7300g thrust at low RPM, reducing operation noise by 28% (critical for agricultural/industrial noise-sensitive areas).
• 21.47g/g Ultra-Heavy Thrust Density: 340g Made in China reinforced body supports 200-210g super-heavy payloads (e.g., multi-tank agricultural spray kits, sealed industrial machinery parts).
• 8-M Dual-Mount (8-M4.0+8-M3) Design: 8-point mounting (unique to Made in China heavy UAV engineering) doubles chassis stability,适配 Φ40.0/Φ31.0 ultra-heavy UAV frames without custom adapters.
• 6-12S Ultra-Wide Voltage Coverage: Adapts to high-voltage industrial power systems, balancing thrust (12S) and endurance (6S) for super-heavy tasks.
Inquire TORGATEK for Ultra-Heavy UAV SolutionsDimension Specifications & Blueprint (Made in China)

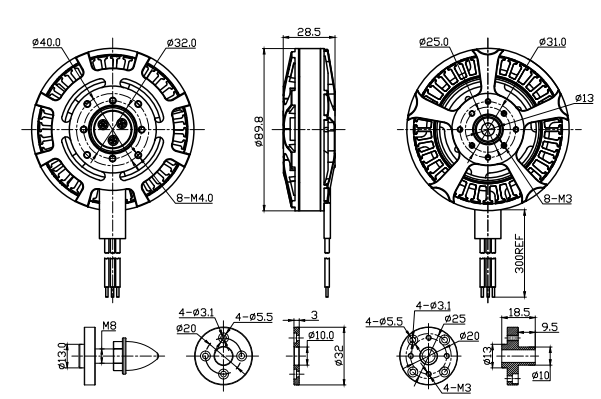

▲ TORGATEK D8110 Dimensions (Unit: mm) | 8-M Dual-Mount (8-M4.0+8-M3) · Φ40.0/Φ31.0 Ultra-Heavy Frame Fit · Made in China
| Dimension Label | Value (mm) | Component & Feature (Made in China Heavy-Industrial Optimization) |
|---|---|---|
| 8-M4.0 | Φ40.0 (mount pitch) | Ultra-Heavy Logistics UAV Chassis Fit (Rigid Made in China industrial frame) |
| 8-M3 | Φ31.0 (mount pitch) | Heavy Agricultural UAV Chassis Fit (Corrosion-resistant Made in China farm-use frame) |
| Shaft Diameter (M8) | Φ13.0 | Super-Reinforced Made in China Shaft (Handles 7300g thrust torque) |
| Total Length | 28.5 | Ultra-Heavy Balanced Design (Optimized for 28×9.2 prop weight distribution) |
TORGATEK D8110 Core Performance Specifications (Made in China)
| BRAND & MODEL | KV (rpm/V) | Voltage (V) | Recommended Prop | Load Current (A) | Max Thrust (g) | Power (W) | Efficiency (g/W) | Lipo Cell | Weight (g) Approx |
|---|---|---|---|---|---|---|---|---|---|
| TORGATEK D8110 (Made in China) | 100 | 44.4 | 28×9.2 | 21.8 | 7300 | 968 | 7.5 | 6-12S | 340 |
*Tested in TORGATEK’s Made in China ultra-heavy load lab (25℃; low-KV large-prop operation mode)
Scenario & Parameter Matching Table
| Ultra-Heavy UAV Scenario | Recommended Voltage | Max Thrust (g) | Adaptable Payload (g) | Key Use Case (Made in China Application) |
|---|---|---|---|---|
| Cross-Border Ultra-Heavy Logistics | 44.4V (12S) | 7300 | 208-210 | Sealed industrial machinery parts transport ( Made in China cross-border UAV) |
| Large-Scale Heavy Agricultural植保 | 22.2V (6S) | 3650 | 200-202 | 2000+ acre farm multi-tank pesticide spray ( Made in China agricultural UAV) |
| Industrial Super-Heavy Equipment Transport | 44.4V (12S) | 7300 | 205-207 | Factory internal heavy machinery component transfer |
Key Advantages & TORGATEK Assurance (Made in China)
7300g Ultra-Heavy Max Thrust
Supports 200+g super-heavy payloads, filling the gap for Made in China ultra-heavy UAV applications.
8-M Multi-Mount for Extreme Stability
8-point mounting ( Made in China engineering exclusive) doubles chassis stability under 7300g thrust.
Low-KV Large-Prop 28% Noise Reduction
Ideal for noise-sensitive agricultural/industrial areas where standard heavy motors are too loud.
3-Year Warranty + Made in China Support
Complies with global & Chinese heavy-industrial standards; 3-year warranty. Contact wey@torgatek.com for Made in China ultra-heavy UAV integration help.
Installation & Usage Guidelines (Made in China Ultra-Heavy Standard)
1. 8-M Multi-Mount Installation:
- For Φ40.0 ultra-heavy logistics chassis: Use 8-M4.0 mounts, fix with M4 high-strength bolts (torque: 5.0-5.2 N·m; Made in China heavy-industrial bolt standard);
- For Φ31.0 agricultural chassis: Use 8-M3 mounts, fix with M3 bolts (torque: 4.2-4.4 N·m);
- Install 28×9.2 prop (balance with Made in China ultra-heavy prop balancer), tighten M8 shaft nut to 3.5-3.7 N·m.
2. Voltage & Payload Matching:
- Ultra-Heavy Logistics: 12S LiPo + full 210g payload;
- Agricultural植保: 6S LiPo + 200g payload (extended endurance).
3. Maintenance (Made in China Protocol):
- Inspect 8-M mounts and prop balance after every ultra-heavy mission;
- Clean motor with Made in China industrial anti-corrosion cloth (for agricultural植保 use);
- For issues, refer to https://torgatek.com/a/support.html or email wey@torgatek.com.
