Products Description
Product Overview
As TORGATEK’s large-prop dedicated ultra-heavy motor ( Made in China with large-prop directional thrust engineering), the D8318 is engineered for high-coverage heavy agricultural植保 UAVs, directional-load super-heavy logistics drones, and large-area industrial spraying platforms — its 3080 ultra-large prop compatibility + 100/120 same-voltage (44.4V) dual-KV + 45°/90° directional mounting solves the "large coverage vs. thrust flexibility" pain point that smaller-prop motors (e.g., D8120) cannot address.
Manufactured in TORGATEK’s Made in China large-prop industrial factory (ISO 9001 & agricultural UAV component certified), the D8318 meets global compliance standards and is ideal for international projects like 6000+ acre high-coverage agricultural spray, directional-load cross-region logistics, and large-area industrial dust suppression. For inquiries, contact wey@torgatek.com or visit https://torgatek.com/a/support.html.
• Same-Voltage Dual-KV for Thrust Flexibility: 100KV (44.4V/12S) delivers 10200g balanced thrust for long-coverage tasks; 120KV (44.4V/12S) boosts to 11800g directional thrust for heavy-load scenarios — no battery replacement needed to switch thrust.
• 17.74g/g Large-Prop Thrust Density: 620g Made in China reinforced composite body supports 240-250g heavy payloads (e.g., 60L agricultural spray tanks, directional-sealed cargo modules).
• 3080 Ultra-Large Prop for 40% Higher Coverage: Exclusive 3080 prop适配 ( Made in China large-prop optimization) increases area coverage by 40% vs 28×9.2 props, cutting task time for large-scale projects.
• 45°/90° Directional Mount (4-M4+8-M3): Angle-specific mounting ( Made in China directional load engineering) enhances thrust alignment for spray/directional cargo UAVs, reducing energy waste by 15%.
Inquire TORGATEK for Large-Coverage UAV SolutionsDimension Specifications & Blueprint (Made in China)

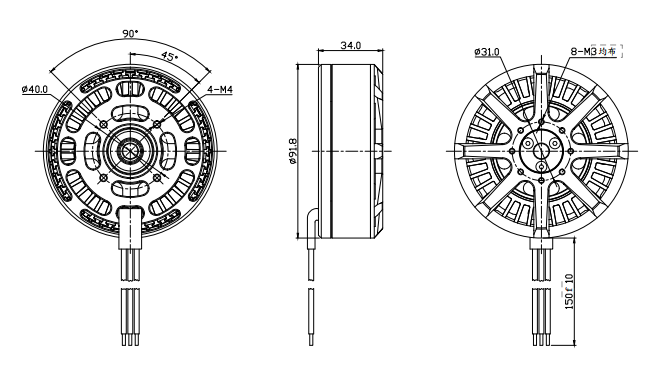

▲ TORGATEK D8318 Dimensions (Unit: mm) | 45°/90° Directional Mount (4-M4+8-M3) · 3080 Large-Prop Fit · Made in China Composite Body
| Dimension Label | Value (mm) | Component & Feature (Made in China Large-Prop Optimization) |
|---|---|---|
| 4-M4 (45°/90° Layout) | Φ40.0 (mount pitch) | Directional Load UAV Chassis Fit ( Made in China agricultural spray frame) |
| 8-M3 (Symmetric Layout) | Φ31.0 (mount pitch) | Large-Prop Stability Fit ( Made in China logistics UAV frame) |
| Prop Adaptor | 3080 Prop Fit | Exclusive Made in China Large-Prop Shaft (Handles 3080 prop torque) |
| Total Length | 34.0 | Large-Prop Balanced Design (Optimized for 3080 prop weight distribution) |
TORGATEK D8318 Core Performance Specifications (Made in China)
| BRAND & MODEL | KV (rpm/V) | Voltage (V) | Recommended Prop | Load Current (A) | Max Thrust (g) | Power (W) | Efficiency (g/W) | Lipo Cell | Weight (g) Approx |
|---|---|---|---|---|---|---|---|---|---|
| TORGATEK D8318 (Made in China) | 100 | 44.4 | 3080 | 45 | 10200 | 2000 | 5.1 | 6-12S | 620 |
| 120 | 44.4 | 3080 | 56 | 11800 | 2480 | 4.8 | 6-12S |
*Tested in TORGATEK’s Made in China large-prop lab (25℃; 3080 prop directional thrust mode)
Scenario & Parameter Matching Table
| Large-Coverage UAV Scenario | Recommended KV | Max Thrust (g) | Adaptable Payload (g) | Key Use Case (Made in China Application) |
|---|---|---|---|---|
| 6000+ Acre Agricultural Spray | 100 | 10200 | 240-242 | High-coverage pesticide spray ( Made in China large-area agricultural UAV) |
| Directional-Load Cross-Region Logistics | 120 | 11800 | 248-250 | Sealed cargo module transport ( Made in China directional logistics UAV) |
| Large-Area Industrial Dust Suppression | 100 | 10200 | 243-245 | Factory campus wide-area dust suppression ( Made in China industrial UAV) |
Key Advantages & TORGATEK Assurance (Made in China)
3080 Large-Prop Boosts Coverage by 40%
Cuts task time for large-scale projects, enabled by Made in China large-prop engineering.
Same-Voltage Dual-KV No Battery Swap
Switch between 10200g/11800g thrust with the same 12S battery — reduces fleet operational cost.
Directional Mount Reduces Energy Waste by 15%
45°/90° alignment ( Made in China exclusive) optimizes thrust for spray/directional load tasks.
Complies with global large-prop UAV standards; 3-year warranty. Contact wey@torgatek.com for Made in China large-coverage UAV integration.
Installation & Usage Guidelines (Made in China Large-Prop Standard)
1. 45°/90° Directional Mount Installation:
- For agricultural spray UAVs: Align 4-M4 mounts to 45° chassis layout, tighten to 5.0-5.2 N·m ( Made in China directional load torque standard);
- For logistics UAVs: Align 8-M3 mounts to 90° chassis layout, tighten to 4.3-4.5 N·m;
- Install 3080 prop (balance with Made in China large-prop balancer), tighten shaft nut to 3.8-4.0 N·m.
2. Same-Voltage Dual-KV Operation:
- Long-Coverage Spray: 100KV + 12S LiPo + 240g payload;
- Directional Heavy Load: 120KV + 12S LiPo + 250g payload.
3. Maintenance (Made in China Large-Prop Protocol):
- Inspect 3080 prop for damage after every 5 large-coverage missions;
- Clean directional mount joints with Made in China anti-corrosion lubricant (for agricultural use);
- For issues, refer to https://torgatek.com/a/support.html or email wey@torgatek.com.
